Product introduction

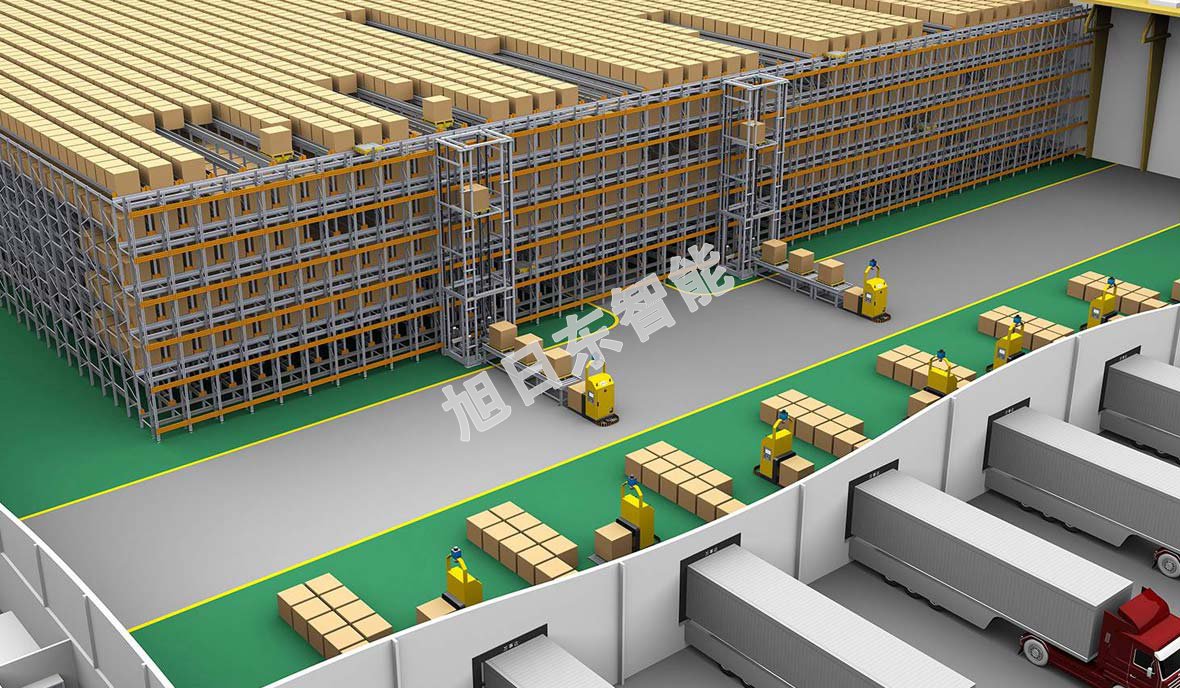

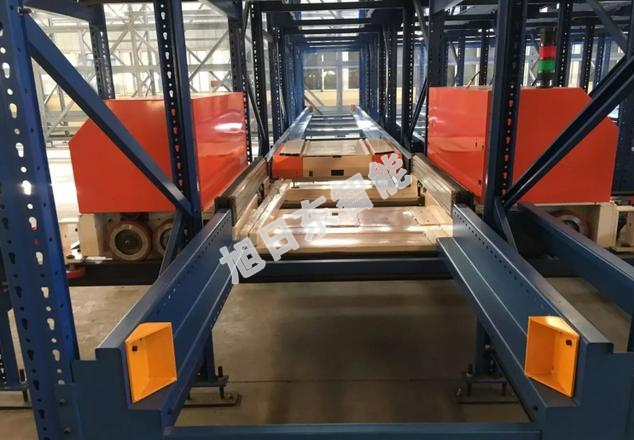

Two-way shuttles are often referred to as ordinary shuttles, also known as two-way shuttles. The two-way shuttle can only travel forward and backward. Usually, it only moves back and forth on the track at the first level of the road to enable transport operations. If you need to change floors, you must rely on the elevator. Independently walk and access goods in a single roadway, and work in multi-layer roadway can be changed by multi-pass elevator. A two-way shuttle car is configured in each roadway of the three-dimensional warehouse, and a shuttle elevator is configured at one end of the three-dimensional warehouse. Through the shuttle elevator, the shuttle car can cut between different layers of the same roadway of the three-dimensional warehouse in exchange for placing goods.

Product characteristics

1. Reliability: 200,000 times of trouble-free access to goods, 50,000 kilometers of travel as verification

2, strong processing capacity: processing capacity increased by 4-7 times

3, scalability: according to the system processing capacity can be configured in each layer of each roadway

4, customizable: can be customized according to the size of the goods, suitable for different specifications of goods

5, large cargo storage: compact structure design, compared with the three-dimensional warehouse of the stacker, the storage capacity is increased by 30% under the same area

Walk straight

Travel speed 240m/min

Acceleration 2m/s2

Positioning accuracy +3mm

Positioning mode encoder /RFID

Forklift mode Single/double depth

Fork expansion speed 1m/s

Power supply voltage DC 48V

Power supply mode Sliding cable/Power management

Communication method Wireless WIFI

Cargo weight 60kg

Applicable cargo range 200-870(mm)

Width 150-650(mm)

Height 100-600(mm)
