Product introduction

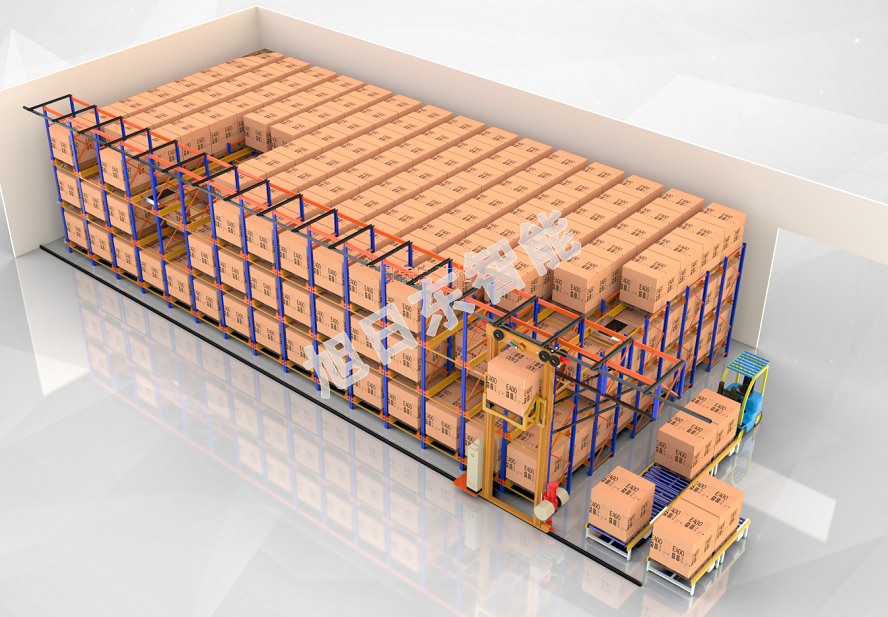

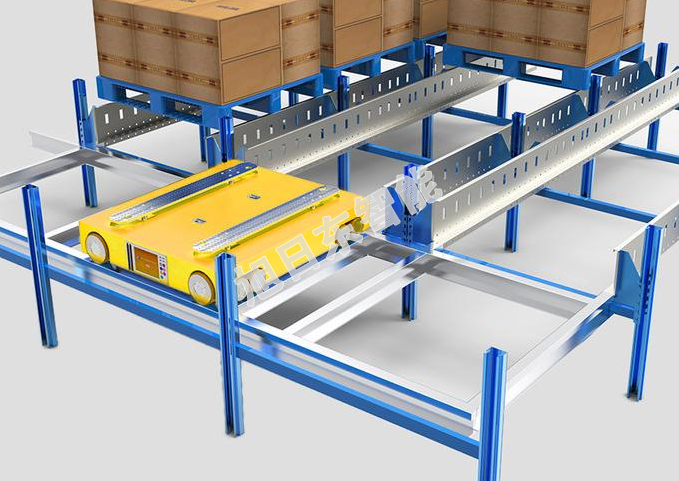

The three-dimensional warehouse adopts the way of stacker and shuttle car to realize the automatic intensive access of goods. A number of two-way shuttle vehicles are configured in the entrance and exit and shelf laneway, and a walking stacker is configured on one side or in the middle of the three-dimensional warehouse. Through the stacker, the shuttle car is cut in the three-dimensional warehouse laneway and between layers in exchange for placing goods. Shuttles and stackers independently walk and access goods in a single roadway in relay mode, and multi-layer roadway work can be changed by multi-pass elevator.

Product characteristics

1. Reliability: 200,000 times of trouble-free access to goods, 50,000 kilometers of travel as verification

2, strong processing capacity: processing capacity increased by 4-7 times

3, scalability: according to the system processing capacity can be configured in each layer of each roadway

4, customizable: can be customized according to the size of the goods, suitable for different specifications of goods

5, large cargo storage: compact structure design, compared with the three-dimensional warehouse of the stacker, the storage capacity is increased by 30% under the same area

Walk straight

Travel speed 240m/min

Acceleration 2m/s2

Positioning accuracy +3mm

Positioning mode encoder /RFID

Forklift mode Single/double depth

Fork expansion speed 1m/s

Power supply voltage DC 48V

Power supply mode Sliding cable/Power management

Communication method Wireless WIFI

Cargo weight 60kg

Applicable cargo range 200-870(mm)

Width 150-650(mm)

Height 100-600(mm)
