Product details

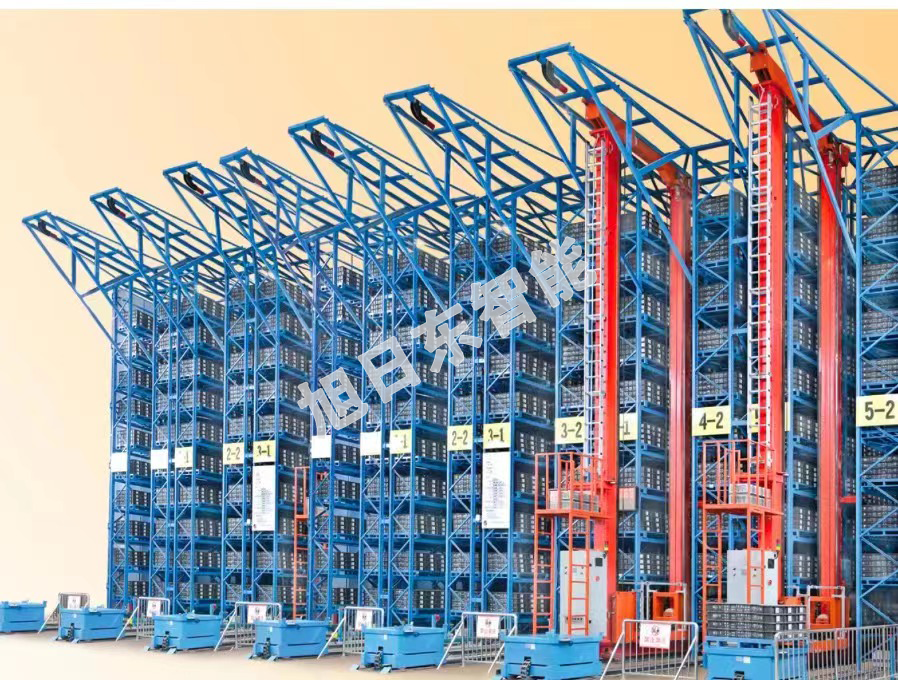

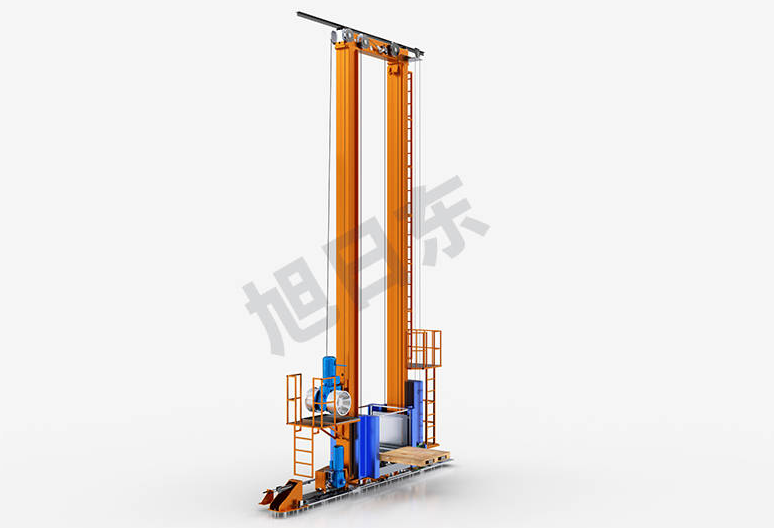

Double column stacker is one of the main components of the automatic three-dimensional warehouse, different from the single column stacker, the frame structure is composed of two columns, upper beam and lower beam composed of a rectangular frame, the structural strength is good, suitable for a variety of lifting height of the warehouse, the general lifting weight of up to 5 tons, if necessary can be larger, Double column stackers operate in the laneway between shelves and are mainly used to move unit cargo on pallets or in boxes.

Features: Adapt to the relatively high storage location, in a tunnel back and forth fast access to goods, rapid response.

Advantages: Good structural strength, good stability, strong load-bearing capacity.

Rated load 0-5000kg

Pallet size standard or custom

The machine height is less than 20m

Travel speed 0~300m/min

Driving positioning accuracy ±2mm

Lifting positioning accuracy ±3mm

Fork positioning accuracy ±3mm
