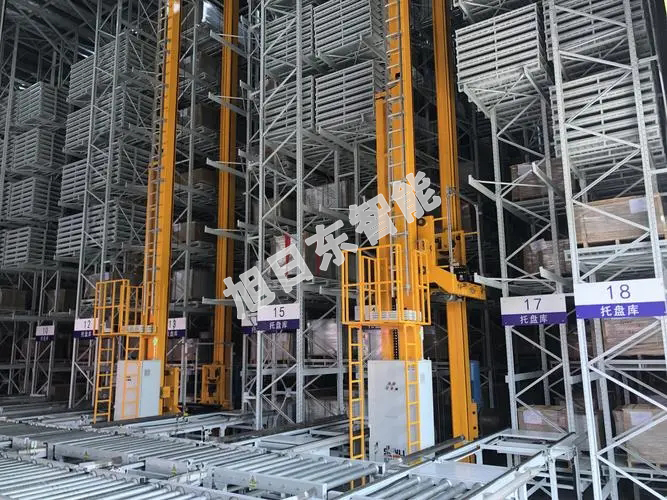

Product introduction

Using the international advanced servo control system and recognition system for full closed-loop control, with barcode or laser ranging and other high-precision recognition methods, to achieve high-precision operation of the stacker, the maximum weight of the stacker can reach 8 tons, walking speed can be up to 200m/min.

Stacking machine three-dimensional warehouse technical specifications:

According to the speed is divided into: conventional stacker, high speed stacker

According to the mechanical structure is divided into: single column, double column

According to the track direction is divided into: straight rail type, curved rail type, transfer rail type and fork type.

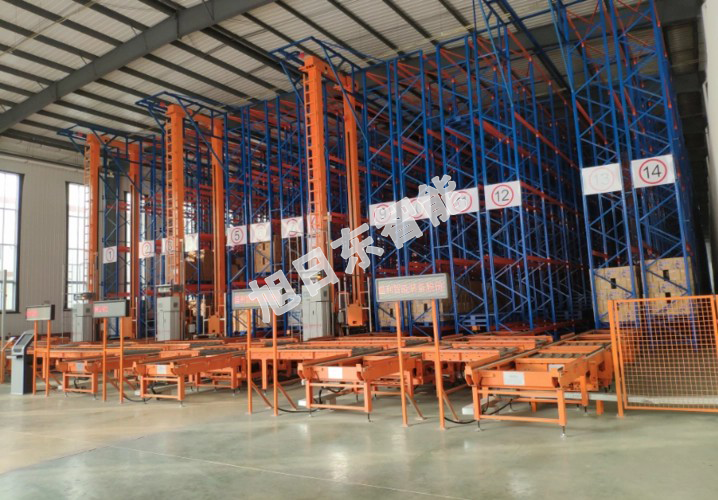

Product characteristics

1. Piler is generally divided into single column and double column structure, by walking, lifting and fork three drive mechanism to complete the operation requirements, the use of international advanced servo control system and recognition system for full closed-loop control, with barcode or laser ranging and other high-precision recognition methods, to achieve high-precision operation of the piler, the maximum weight of the piler airborne up to 8 tons. Travel speed up to 400m/min. The stacker is driven by the walking motor through the drive shaft to drive the wheels on the lower guide rail to do horizontal walking, by the lifting motor through the chain/wire rope/belt to drive the load platform to do vertical lifting movement, by the fork on the load platform to do telescopic movement; The moving recognizer is used to control the horizontal moving position of the stacker. The lift recognition device is used to control the lifting position of the loading platform; Through the recognition and photoelectric recognition, as well as the conversion of communication number, the computer control can be realized, and the automatic, semi-automatic and manual control can be realized through the on-board control panel;

2. Stacker structure is safe, stable and reliable, controlled by vector frequency drive and encoder position, using mechanical and electrical dual safety device, using information transmission tracking technology;

3. As an important transportation equipment in intelligent three-dimensional warehouse, the selection of various technical parameters will directly affect the operating efficiency and economic benefits of the entire intelligent three-dimensional warehouse. Reasonable selection of various parameters will greatly improve the operating efficiency and economic benefits of the entire system, so the horizontal running speed, lifting speed and fork expansion speed of the stacker. The level of these three parameters is directly related to the efficiency of the entire intelligent three-dimensional warehouse.

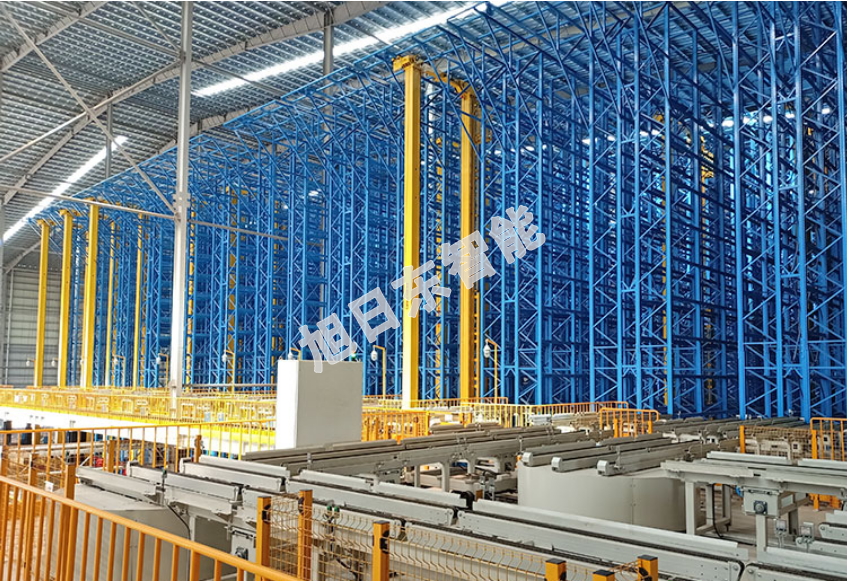

Ground rail Steel rail, aluminum rail

Device height Max=45m

Fork form of single deep, double deep

Walking speed (4-300m/min frequency conversion control), walking acceleration (≤2.5m/s²)

Lifting speed (4-60m/min frequency conversion control), lifting acceleration (≤1m/s²)

Fork speed (4-60m/min frequency conversion control), lifting acceleration (≤1m/s²)

Battery type lithium iron phosphate battery

The motor is subject to design;

The above is the conventional stacker parameters as a reference, our company according to the actual project technology selection, design, production. (For high efficiency requirements need to choose high speed stacker)
