Product introduction

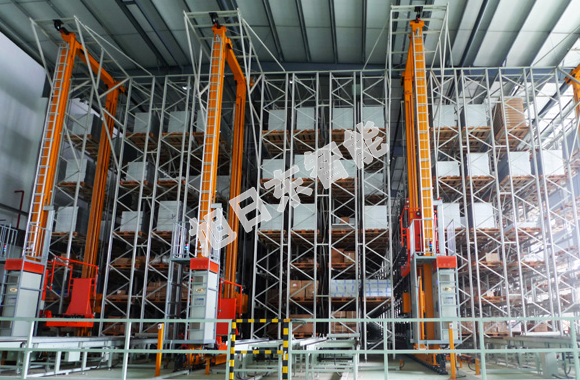

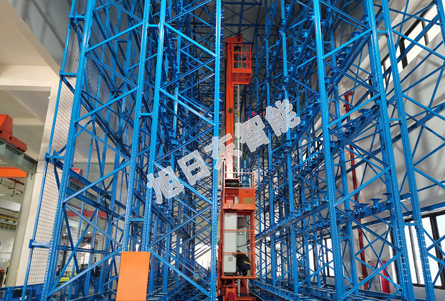

Double-stretch stacker automatic three-dimensional warehouse, using a stacker is responsible for taking and placing two rows (total four rows) of shelf materials on the left and right sides. The storage is more dense than the single ascending vertical library. According to the computer instructions in the tunnel between the three-dimensional shelves along the horizontal and vertical direction, with the fork to take out or store the goods on the cargo grid. Compared with ordinary stackers, the double-stretch stacker reduces the number of stackers used, so the cost is directly reduced.

Power supply mode: Safely slide the cable

Maximum working load (kg) : 1000

Walking positioning accuracy (mm) : ±2

Lifting positioning accuracy (mm) : ±2

Fork positioning accuracy (mm) : ±2

Maximum travel speed (m/min) : 0-200

Design, production. (For high efficiency requirements need to choose high speed stacker)
