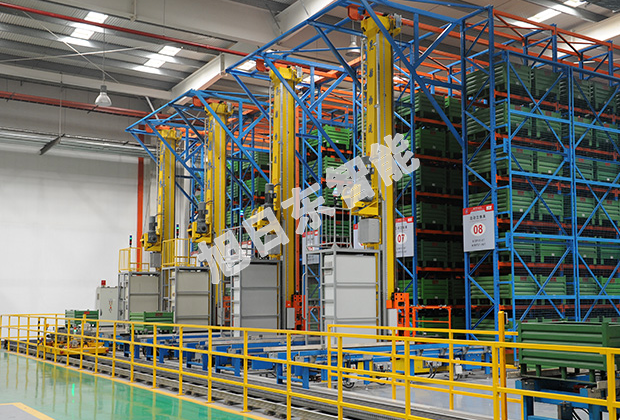

This three-dimensional warehouse stacker adopts single column structure, which is fast and convenient to install and debug.

Functional characteristics

Light weight, fast speed, simple structure, beautiful appearance;

Fine and perfect design, with a number of unique anti-wear, impact resistance design, long life, low maintenance cost;

Implement strict process control and electrical control standards, good equipment stability, low failure rate;

Product range is complete, including light, heavy, double deep position, ultra-high column, low temperature type, ultra-high speed stacker and so on.

Weight (kg) : 500-3500

Operation mode: PLC manual, semi-automatic, fully automatic

Power supply mode: Safely slide the cable

Maximum working load (kg) : 1000

Walking positioning accuracy (mm) : ±2

Lifting positioning accuracy (mm) : ±2

Fork positioning accuracy (mm) : ±2

Maximum travel speed (m/min) : 0-200

Maximum lifting speed (m/min) : 0-80

Fork expansion speed (m/min) :0-40

Maximum acceleration (m/s²) :0.33-1

Maximum acceleration (m/s²) :0.33-0.7

Fork maximum acceleration (m/s²) :0.4-0.7

Maximum expansion speed of fork (m/min) :40

Track material: Aluminum alloy/carbon steel

Motor: SEW

Speed control mode: frequency conversion/servo

Column material: Aluminum alloy/carbon steel
