Product introduction

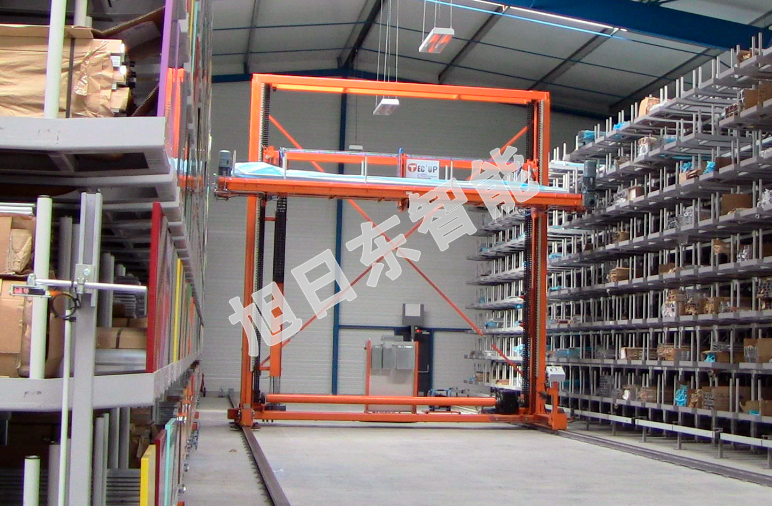

The stacker is specially designed for ultra-long materials, the length of the transported materials can reach 10M (it can be extended if necessary), the general lifting weight can reach 1 ton, and the high-density automatic access of ultra-long materials can be realized. The stacker with a special design scheme realizes the automatic access of materials, which can walk along the horizontal and vertical directions in the roadway between the three-dimensional shelves according to the computer instructions, and take out or store the goods on the cargo grid. The stacker designed through independent innovation belongs to the leading excellent level in China.

Functional characteristics

Light weight, fast speed, simple structure, beautiful appearance;

Fine and perfect design, with a number of unique anti-wear, impact resistance design, long life, low maintenance cost;

Implement strict process control and electrical control standards, good equipment stability, low failure rate;

Product range is complete, including light, heavy, ultra-high column, low temperature type, ultra-high speed and so on.

Weight (kg) : 2000-12000

Operation mode: PLC manual, semi-automatic, fully automatic

Power supply mode: Safely slide the cable

z Large working load (kg) : 200-2000

Walking positioning accuracy (mm) : ±12

Lifting positioning accuracy (mm) : ±2

Fork positioning accuracy (mm) : ±2

z large travel speed (m/min) : 0-200

z Large lifting speed (m/min) : 0-80

Fork expansion speed (m/min) :0-40

Walking z high speed (m/s-2) :0.33-1

Boost z big speed (m/s-2) :0.33-0.7

Fork z high speed (m/s-2) :0.4-0.7

Fork z large expansion speed (m/min) :40

Track material: Aluminum alloy/carbon steel

Motor: SEW

Speed control mode: frequency conversion/servo

Column material: Aluminum alloy/carbon steel double column
