Product introduction

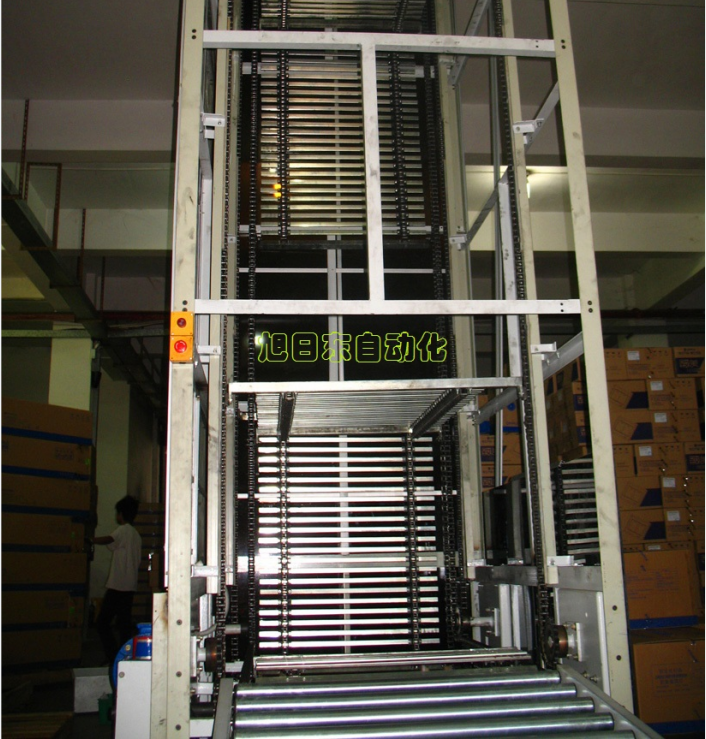

Continuous vertical elevator is the abbreviation of continuous vertical conveyor, is a continuous vertical transmission of automation equipment between floors, according to the elevator import and export classification, it can be divided into Z-type continuous elevator (import and export in the left and right sides), C-type continuous elevator (import and export in the same direction), E-type continuous elevator (multiple imports and exports).

Continuous vertical lift it is different from the reciprocating elevator, the difference between the two equipment is that the reciprocating elevator plate can be carried out reciprocating movement, in the two floors or up or down to achieve the two-way transport of goods, the weight of the transport of goods up to 2 to 4 tons, because of its reciprocating transport, so the transport efficiency is lower than the continuous elevator.

Continuous vertical lift is aimed at the need for one-way continuous transport of goods between floors, its footprint is small, commonly used to transport a single fixed shape of products, such as: paper packing boxes, turnover boxes, tool plates, round cylinders and various flexible packaging items, the maximum load of about 500KG, because of its continuous transmission characteristics, so faster delivery, The efficiency is higher than reciprocating, the elevator can also complete the drying and cooling of the item while lifting the item upward, and the continuous elevator can be connected to the belt conveyor, the roller conveyor or the chain plate conveyor at the upper and lower floor conveyor port to realize the automatic transportation of logistics between floors.

Product characteristics

1. Continuous lifting machine has the characteristics of high conveying efficiency, which can quickly lift materials;

2. Excellent performance in carrying capacity, continuous elevator can lift up to 500KG items, most of the products can be lifted, there will be no overload situation;

3. Continuous elevator has compact structure and small footprint, which can help enterprises reduce investment costs;

● Maximum load: 100KG (per plate);

● Maximum conveying height: 30 meters;

● Conveying direction: Type Z/Type C;

● Flat layer error: ±1mm;

● Maximum transport:

W1500*L1500*H2000(mm);

* Conveying material for the bottom surface is flat.

● Minimum delivery:

W300*L300*100(mm);

* Conveying material for the bottom surface is flat.

● Equipment periphery: metal mesh, color steel plate, PC sunshine board, plexiglass, tempered glass
