Product introduction

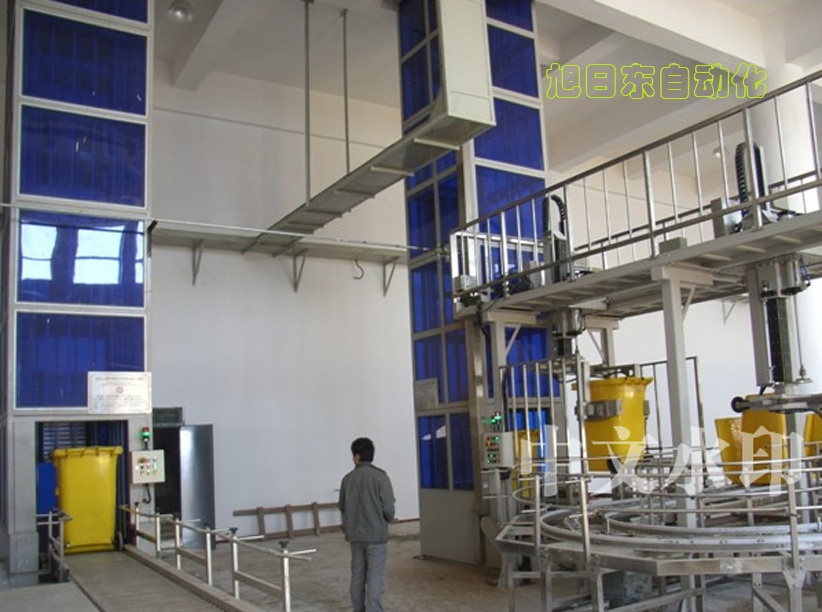

Reciprocating elevator is a kind of professional equipment which is widely used between floors. The main working principle of the machine is to use four closed chain transmission, install a conveyor with the lifting chain repeatedly lifted on the chain, the goods are sent by the assembly line or forklift into the lifting conveyor, the lift starts lifting operations, lifting to the exit position after the brake stop, the goods are sent out or into other conveyor lines by the lifting conveyor. The machine is controlled by PLC system, and is equipped with self-locking safety protection function in the control, and the outer frame is provided with protective net to prevent the occurrence of production accidents. The machine is suitable for all kinds of palletizing products in various industries, fully realizing the automatic entry and exit between each floor, and the ideal product of the access line; At the same time, it can also cooperate with a single forklift or manual hydraulic truck to move the large pallet goods, the pallet goods are sent to the conveyor line at the entrance, and then pick up the goods in the conveyor line at the exit section, and the link of the middle floor is automatically controlled, which significantly improves the delivery efficiency and reduces the daily operating costs.

Product characteristics

It has the advantages of advanced operation, reliable performance and high positioning accuracy.

It has the advantages of simple structure, low maintenance cost, high transportation efficiency, high lifting height, stable operation and wide application range.

1. Reciprocating lifts can be divided into Z type, C type, E type according to the import and export direction;

2. Lifting speed: <60m/min(chain drive mode);

3. Lifting stroke: 0-20m;

4. Maximum transmission beat: >15s/ piece (depending on the stroke);

5. Load: <4000Kg;

6. Automatic operation, and configuration of a variety of safety devices, so as to ensure the safety of human cargo;

7. The upper and lower strokes of the lifting car can transport materials, and the materials can flow to both sides at the same time in a cycle process of the lifting car;

8. The range of lifting travel is large, but the throughput decreases with the increase of travel in the same time;

9. The reciprocating elevator uses the up and down reciprocating movement of the lifting car to achieve the vertical transportation of materials. Different kinds of conveying equipment can be installed on the elevator car, and cooperate with the entrance and exit conveying equipment, so that the conveying process can be fully automated, thus improving the production efficiency;

10. The reciprocating elevator has various forms (fixed or mobile), flexible layout, materials can enter and exit the elevator from all directions, which is convenient for the layout of production equipment;

11. It saves space than the inclined elevator, but the conveying capacity is not as large as the inclined elevator

12. Conveying material type: packing box, pallet, card

13. Can be designed and manufactured according to customer requirements
