Driving device:

In the middle drive mode, the gear motor is mounted on a bracket under the frame. It consists of a pedestal motor with a drive sprocket. The chain connects the motor sprocket and the two adjacent spoke sprockets, and then the roller sprocket connects the other drive rollers in turn through the closed ring chain. Motor shaft end sprocket tightening screw and shaft end baffle;

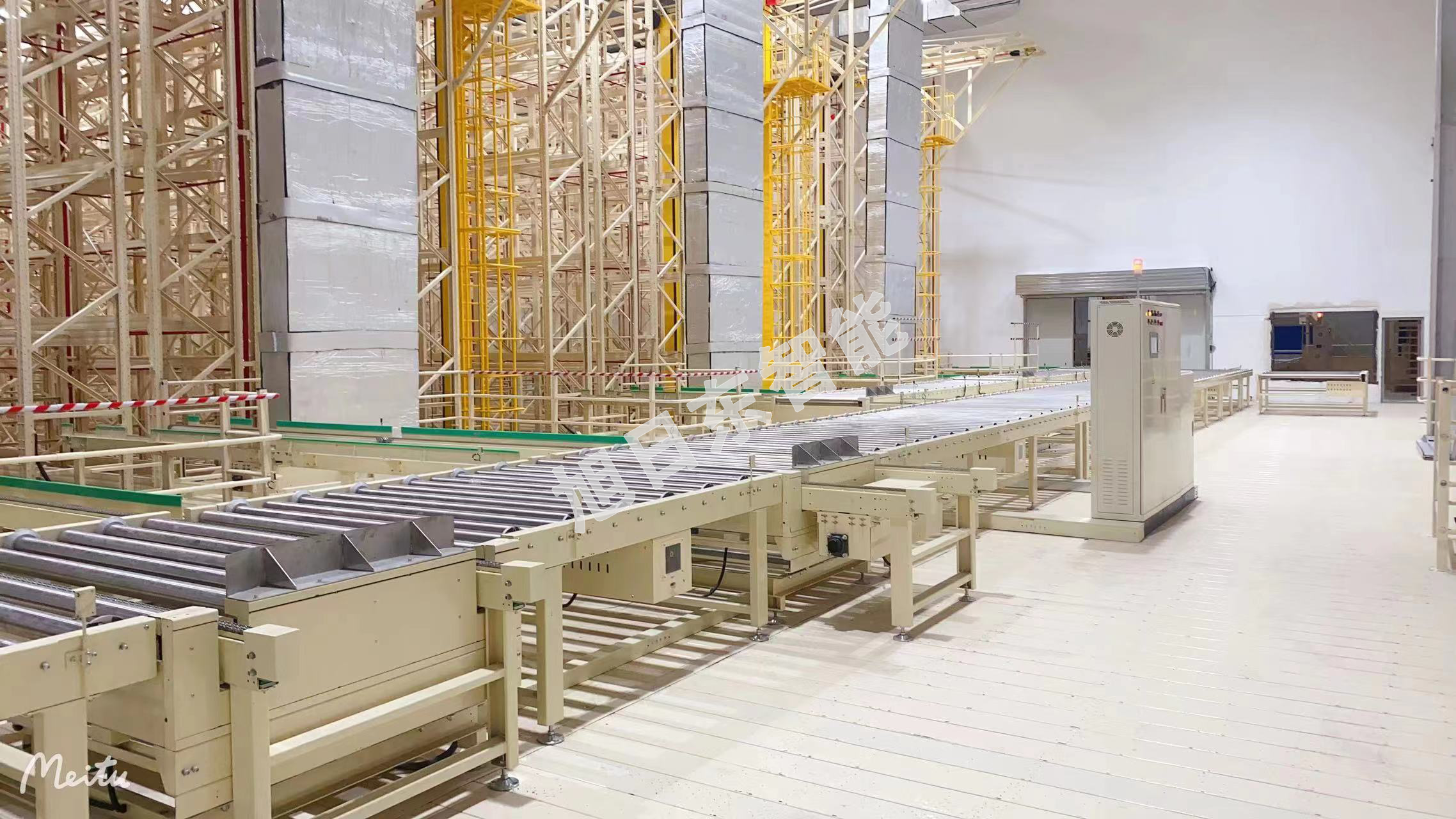

Roller conveyor structure:

Roller: φ76 single-side double sprocket rubber roller, cylinder precision rolling welding pipe, roller spacing according to design;

Body: The frame is welded by square tube, the roller is installed on the side plate cold-formed steel, the frame is bolted, the screw adjusting foot is fixed to the ground, and the conveying surface height is adjusted to ±25mm;

Guide guardrail: the pallet relies on the stop ring on the roller for conveying guidance, the guide is side guide, and the stop ring is welded with the roller;

Drive chain: adopts precision roller chain in line with GB1243 standard;

Drive device: The intermediate drive mode is adopted, and the gear motor is installed on the bracket under the frame. It consists of a pedestal motor with a drive sprocket. The chain connects the motor sprocket and the two adjacent spoke sprockets, and then the roller sprocket connects the other drive rollers in turn through the closed ring chain. Motor shaft end sprocket tightening screw and shaft end baffle;

Protective cover: roller chain drive and motor chain drive part of the closed protective cover;

Accessories: photoelectric support (using the frame roller hole installation), bar code scanner support and end limit baffle (photoelectric support has the function of protecting the photoelectric, and the goods will not shake violently);

Surface coating: the frame, legs, photoelectric support mounting board and other parts are cleaned by wire brush, sandpaper, pickling to remove grease, phosphating surface electrostatic spraying epoxy resin powder and baking.
