EMS bike

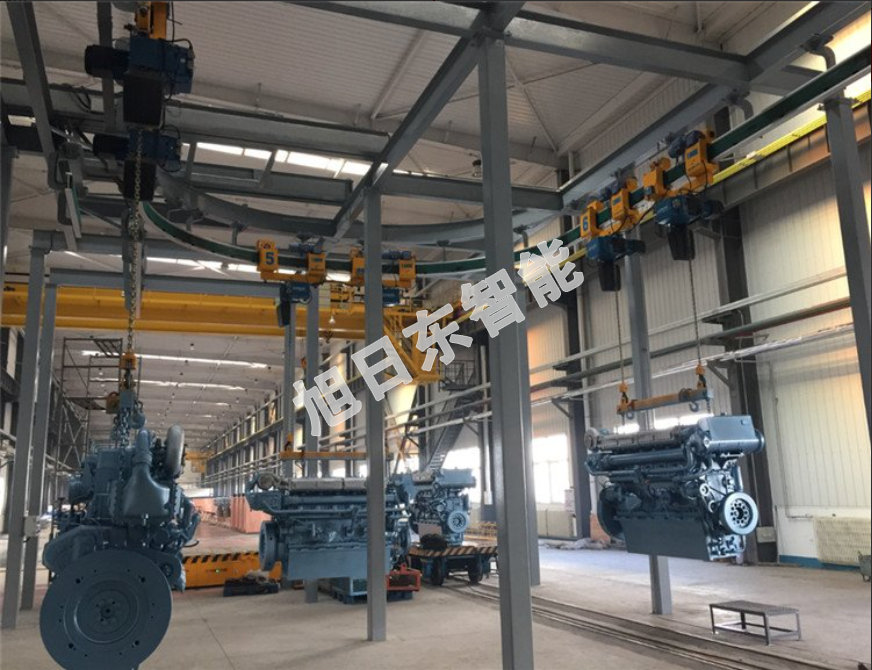

An air-mounted electric Monorail System (EMS) is an air-mounted conveyor system in which multiple independent trucks operate on a specific horizontal monorail. The modular design can be designed into many layout forms according to needs, PLC control, control signal transmission through mobile bus or intelligent coding, sliding touch power supply, frequency conversion or servo speed regulation, with the organization of production, automatic bifurcation and confluence, automatic transmission, air storage, automatic accumulation, automatic recognition, accurate positioning, fault self-diagnosis, remote monitoring and other functions.

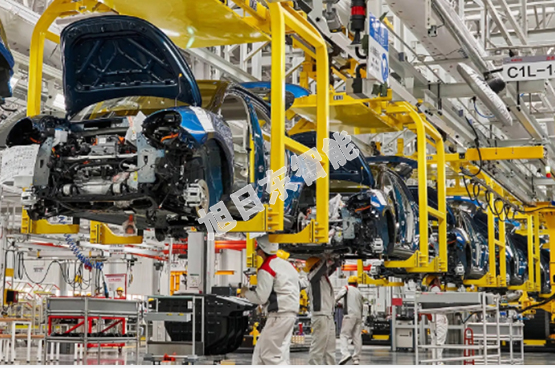

It is mainly used in automatic handling of production products, welding, painting, assembly automatic production lines of automobile and auto parts, construction machinery industry, and can be widely used in agricultural machinery, home appliances, tobacco, warehousing logistics, motorcycles, metallurgy, rubber and other industries and fields.

Product features:

1, with lifting, transportation, storage, automatic delivery, vertical lifting and switching lines, horizontal automatic shunt and other functions;

2, the transmission line can be flexibly arranged in the cube space;

3. It can be suspended in the air or arranged on the ground;

4, the car is driven separately, can travel at different speeds and change speed according to needs;

5, the car can climb by itself;

6, non-metal wheel to make the car run smoothly, low noise;

7, do not need lubrication, does not affect the environment;

8, modular track support, easy to install and disassemble;

9, low system energy consumption;

10, the system is highly intelligent.

Main forms:

1, monorail bicycle car; 2, double track bicycle car;

System composition:

1, track: aluminum alloy profile, steel track;

2, switch: steel or aluminum frame, servo motor or cylinder drive;

3, car sets: single, double, three, four car sets, deceleration electric drive, walking wheel for polyurethane;

4, spreader: belt (chain) lifting, automatic spreader;

5, track hanging: by hanging accessories and adjustable support rod, all bolted connection;

6, electronic control system: system distributed control, car control system or centralized control, remote control, etc.

Performance parameters:

1. Load capacity: 30kg-500kg

2, running speed: 60-200m/min

3, positioning accuracy: ±2mm

4, lifting height: 1-6 meters

5, motor power: 0.4-5.5KW

Space requirements:

Workshop space can be used with a height greater than 3 meters
