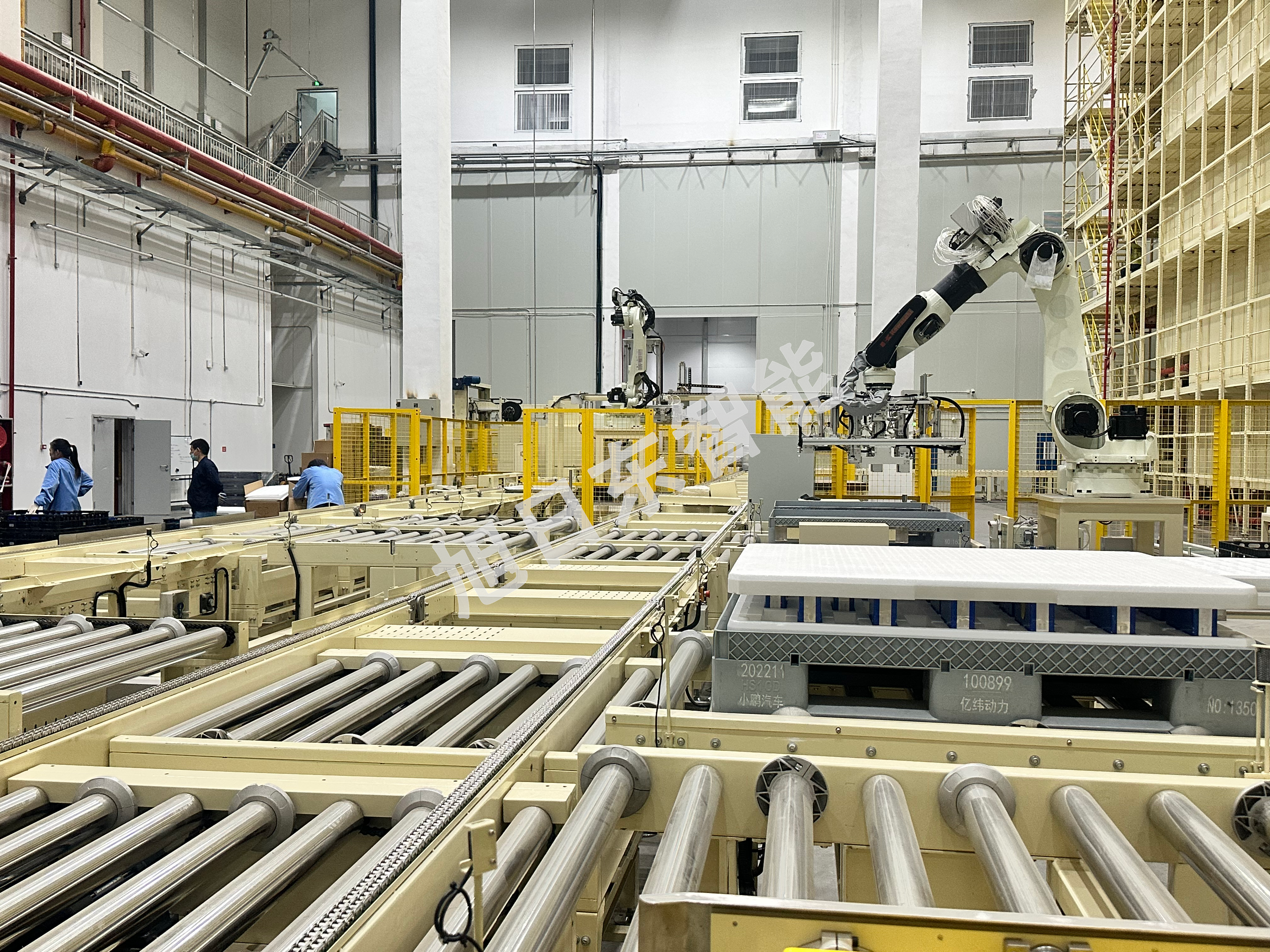

It mainly includes the roller conveyor, vertical elevator, rotary table, elevator and other equipment used for conveying pallets and packing cases. The equipment is equipped with photoelectric switches, stroke switches, proximity switches and other detection devices for detecting the position state of materials and the operating state of the equipment. Transmission system and power equipment with safety cover to prevent direct contact with personnel; Manual operation area conveyor equipment is equipped with an emergency stop switch every 5m, abnormal or safety problems are the first time to stop the operation of the conveyor equipment. Through the combination of conveying, lifting and other equipment, the flow of materials is realized, the conveying speed meets the efficiency requirements of customers, and the rated conveying load can be customized according to customer requirements to meet the production and operation requirements.

Conveyor line equipment can meet the following requirements:

① The equipment is equipped with photoelectric switches, stroke switches, proximity switches and other detection devices for detecting the position state of materials and the operating state of the equipment. Each process can be transferred to the next process entrance can be equipped with pallet scan gun.

② Both sides of the transmission line are equipped with protection guide devices;

③ The transmission line has an emergency stop switch, and the manual operation area 5-8m is equipped with one (according to the actual layout on the site);

④ The electronic control system has delay protection when conveying materials;

(5) In the equipment, the parts of the mutual motion generated by the machinery are not allowed to appear intermetallic sliding friction;

⑥ The parts of the mechanical part should not be damaged and the workpiece damaged, and all kinds of interlock mechanism equipment should be set;

⑦ The lubrication design between the mechanical structure is closed;

⑧ Smooth operation of the conveyor line, no abnormal sound;

⑨ maintenance to provide control panel;

Note 1: The equipment needs wear-resistant materials and does not produce dust (it is impossible to avoid the location of dust generation protection and collection devices).

Note 2: Each area of the logistics line is reasonably configured with touch control platforms. The number of touch control platforms in the same area is subject to the specific design to achieve the functional requirements of the logistics line. It is required that different touch control platforms in the same area have interlocking functions to prevent equipment failure caused by misoperation and repeated operation, resulting in safety accidents.

（1）Drum line equipment

The above parameters are subject to the final design.

（2）Jacking and lifting machine

The above parameters are subject to the final design.

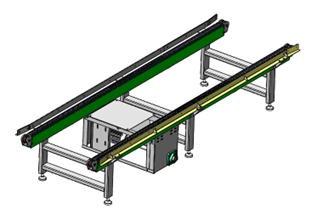

（3）Double row chain conveyor

The above parameters are subject to the final design.

（4）Lifting conveyor

The above parameters are subject to the final design.
