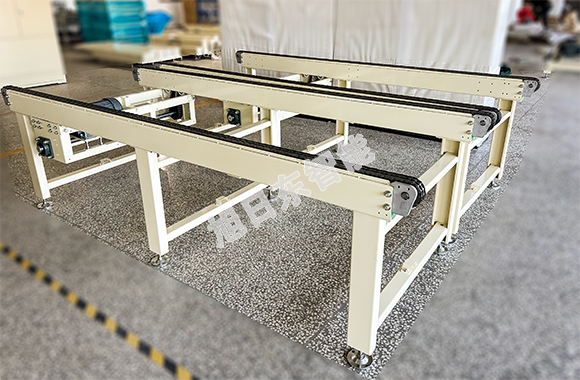

Conveyor chain: in line with GB1243 standard;

Chain guide: self-lubricating polymer polyethylene (UHMW) chain bracket embedded in the guide rail cassette;

Loading and unloading port guide: All the loading and unloading port guide are made of stainless steel bars, good wear resistance and crashworthiness;

Body: assembled leg, connected with the main frame bolt plate, conveying surface height adjustment ±25mm;

Side orientation: Set orientation according to project layout requirements; Drive device: built-in drive, motor and drive shaft installed in the conveyor inner frame, which includes a speed motor, drive shaft assembly, drive sprocket group and motor seat and chain tensioning device. The sprocket at both ends of the drive shaft drives the double-row conveying chain, and the screw type adjusting tightening wheel tensifies the conveying chain;

Accessory device: sensor, limit switch bracket. End limit plate (arranged according to project requirements). Necessary safety cover for operating parts;

Photoelectric support: photoelectric support has the function of protecting photoelectric, and the goods will not shake violently after passing; Surface coating: the legs, guide parts, accessories and other parts are removed by wire brush, sandpaper, etc., and after pickling to remove grease, after phosphating, the surface of the electrostatic spraying epoxy resin powder and baking. Machined parts are chrome plated;

Purchased parts configuration: chain with Hangzhou Donghua, bearing with seat and bearing with NSK; With a stainless steel chain.
